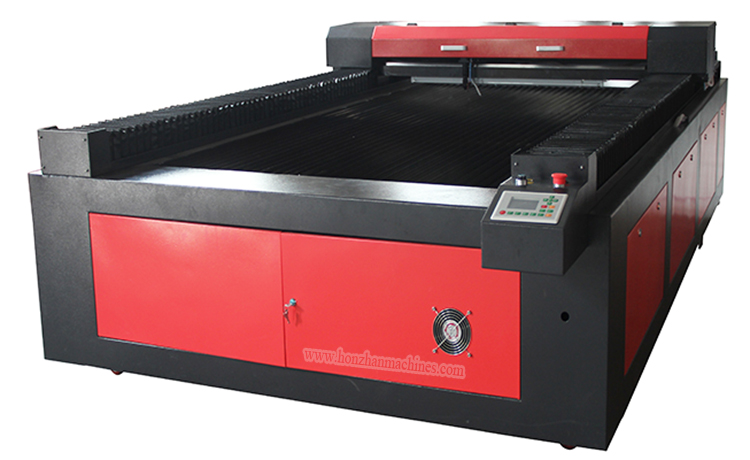

Honzhan HZ-1325 Laser Engraving Cutting Machine 1300*2500mm for Wood Acrylic Plastic
Honzhan HZ-1325 Laser Engraving Cutting Machine 1300*2500mm for Wood Acrylic Plastic
1. Applicable materials:
Non-metal materials such as double color board, Plexiglas,glass, bamboo and wood, rubber, stone, marble, granite and tiles, fabric leather etc.
Applicable industry:
Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry.
2. Machine features:
1). Honzhan HZ-1325 Laser machine has a big cutting area like 1300x2500mm. We can also customize the different sizes according to customers' requests.
2). If you want to both engrave and cut, we can equip TWO Co2 laser tubes, one is low power like 80W for engraving,the other is more than 130W for cutting.
3). High precision mechanic structure design, the data control is stable. Adopt imported linear guide, more stable and higher accuracy.
4). Choose high technical laser tube, the beam of light is of high quality and the life is long.
5). Industrial water cooling system with protection, the continuous work ability is stable.
6). The compatibility of the software is good, which can support the format of PLT, BMP, DXF etc.
7). Humanism closed designed system for top and bottom exhaust, ensures the safety of the processing, worriless whole-process.
3. Technical Parameters:
|
Model |
HZ-1325 |
|
Working area |
1300mm*2500mm |
|
Work table |
Blade table, optional honeycomb table |
|
Laser tube power |
80W, Optional 100W, 130W, 150W |
|
Laser tube type |
CO2 laser tube, Optional Reci laser tube |
|
Laser tube cooling |
Water cooling |
|
Control board |
Ruida control board and operate panel |
|
Engraving speed |
25-25000mm/min |
|
Cutting speed |
50-10000mm/min |
|
Location precision |
<0.01mm |
|
Cut thickness |
0-20mm, (The thickness of cut is for reference, depending on the materials and clients’ cutting requirements ) |
|
Data Transfer Interface |
USB, optional DSP controller |
|
Power supply |
AC 220V, 50HZ / AC110V, 60HZ |
|
Min. shaping character |
English word: 1mm*1mm |
|
Software supported |
Artcut, CorelDraw, AutoCAD , PhotoShop |
|
Supported graphic |
BMP, PLT, DST, DXF, JPG, TIF |
|
Driving system |
Stepper motor, optional servo motor |
|
Cooling system |
Water-cooling and protection system |
|
Water cut protection |
Yes |
|
Operating system |
Windows2000/XP/VISTA/WIN7 |
|
Machine Power |
＜2250W |
|
Operating temperature |
0°C~45°C, humidity 5%~95% |
|
Machine Package |
Plywood wooden packaging |
|
Package size |
3700x2140X1230mm |
|
Gross weight |
1000kg |
|
Standard accessories |
(01)laser engraving cutting software (English version) (02) User manual (English version) (03) User manual of software (04) USB cable (05) communication cable (06) air exhaust fan (07) air pump (08) 3 reflecting mirrors (has been installed in the machine) (9) one focus lens(has been installed in the machine ) (10) one laser tube(has been installed in the machine) (11) tool box |
|
Optional parts |
Water Chiller, CCD camera, Multi laser heads |
4. Detail Images:
.jpg "image")
